Small 5-axis Cnc Machine
Description
Technical Parameters
We are committed to desktop processing equipment manufacturers, all products will deliver high quality. Welcome to place order

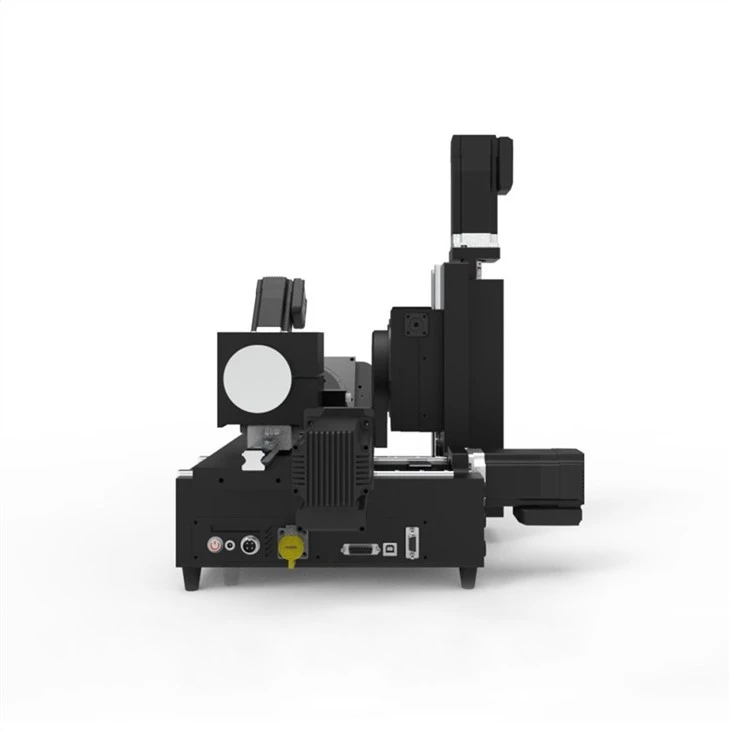

Small 5-axis cnc machine:Desktop Pocktop CNC V3.5, Desktop Pocktop CNC V3.5
Small 5-axis cnc machine is a desktop five-axis engraving machine produced to satisfy geeks, CNC professional education, and low-cost design and manufacturing. The whole machine can be freely placed on the desktop for operation and use, and the process from design to finished product can be completed quickly with low operating costs. As a desktop 5-axis CNC machine tool, Desktop NC supports Windows system to control. Users can import CAD or CAM format structure drawings through related software for milling. Of course, Desktop NC also supports command control of standard G codes. Regardless of its small size, it is considered that its performance is not eye-catching. Its spindle speed performance of 0-24000rpm is also satisfactory for designers in the professional field.
Provide smart installation for your 3D printer, After installation, the machine will recognize your 3D
slice model and create the most optimized printing operation for you.
FEATURE
Product features
As an iterative product of V3, V3.5 has further improved its machining accuracy and is equipped with an automatic tool setting system.
The rotation axis is upgraded from a worm to a harmonic, the Z axis is optimized to a double guide rail, the main control board is upgraded,
and the origin of each axis is upgraded to a servo Z0 signal. The spindle is equipped with an 800W water-cooled high-speed electric spindle.
In addition, the sheet metal chassis is designed, the key components are waterproof, the cutting fluid can be sprayed and metal or jade can
be processed.
①It is suitable for campus makers, university innovation studios to produce processed parts, vocational colleges integrated CNC professional training, and enterprise scientific research units to process small parts.
②The whole machine weighs only 45kg and occupies a small area. It can be freely placed on the desktop for operation and use, and the process from design to finished product can be quickly completed with low operating costs.
③The application method is a simple and professional combination, equipped with video tutorials and paper teaching materials, which not only meets the entry of CNC beginners but also meets the needs of professional learning CNC operators. You can directly use third-party programming software graphics to directly generate G code programs, or you can manually program, Wide range of processing materials (copper, aluminum, plastic, wood, Plexiglas, and other materials), with high processing precision, and the machine is strong, stable, and durable.
④It is equipped with a precision high-speed electric spindle 24000rpm, the control card controls the spindle speed, and the spindle motor power is 800w.
⑤Using nut ball screw, five-axis using servo/stepping motor, linear axis using silver guide rail slider.
⑥The machine is equipped with a protective cover to isolate dust and noise, and has a dust collection system; casters and horizontal foot pads are added to facilitate the movement and positioning of the equipment; it is equipped with a 5-axis electronic tool setting system, which greatly facilitates operation and tool set.
⑦It adopts ISO standard G code programming, supports M code and S code, supports major software programming, and currently supports Powermill, UG, Fusion360, HSM post-processing. It has perfect after-sales technical support, provides PM and Vericut machine tool motion simulation, and provides tool path questions and answers.
Note: The standard five-axis linkage can be added or replaced according to user needs.
TESH SPECS
| Equipment parameters | ||||
| total dimension | table dimension | a,c,rotating effective movement |
a,caxis rotaing data | |
| 650*400*450mm | 140*130mm | A:±10°C:360° | 1:50 grinding worm reducer cross rolling rotating bearing | |
| total weight | max table weight | three axis ball screw | linear guide | |
| 60kg | 74kg | x&z:1204 c7y:1605 c7 | x:hiwin mgn 12,y:hiwin mgn 15, z：hiwin hgh20 | |
| x,y,z axis effective | effective machining area | frame | machining speed | |
| x160*y200*z125 | x160*y200*z125 | 6061T6 Al+45 quenched & tempered steel |
2500mm/min(different material have different speeds) | |
| main axis type | parts fixture | dust proof | tool dimefension | |
| ①65mm 800W water cooling motorized spindle,24000r/min |
steel fixture,reservation holeer 50 fixture stand, 63,80chuck |
organ typedust cover oil seal proof (rotary table waterproof treatment) |
ER110-7mm |
|
Equipment and processing model display
No matter what you need, please feel free to contact us.
Contact Us : xslightings@xslightings.com
FAQ
1. What are the main applications of this Small 5-axis CNC Machine?
This Small 5-axis CNC Machine is ideal for precision machining tasks. It can be used in industries like aerospace for making complex aircraft parts, medical for crafting intricate surgical instruments, jewelry for detailed designs, and electronics for producing small, precise components. It's also great for prototyping various small - scale products.
2. What is the machining accuracy of this Small 5-axis CNC Machine?
Thanks to its high - precision components such as the three - axis ball screw (x&z: 1204 c7; y: 1605 c7) and linear guides (x: hiwin mgn 12; y: hiwin mgn 15; z: hiwin hgh20), this machine offers excellent machining accuracy. It can achieve tight tolerances, making it suitable for manufacturing parts that require high precision.
3. How easy is it to operate this Small 5-axis CNC Machine?
The machine is designed with user - friendliness in mind. While 5 - axis machining is complex, the control system is intuitive, and with proper training, operators can quickly get familiar with programming and operating it. Also, the machine's compact size makes it easy to set up in various workshop environments.
4. What materials can this Small 5-axis CNC Machine process?
It can handle a wide range of materials, including metals like aluminum (such as 6061T6 Al), steel (like +45 quenched & tempered steel), as well as some engineering plastics. However, the machining speed varies depending on the material (with a maximum of 2500mm/min for suitable materials).
5. What is the maximum weight the table of this Small 5-axis CNC Machine can hold?
The maximum table weight it can support is 74kg, which allows for machining a variety of workpieces within this weight range.
6. How does this Small 5-axis CNC Machine ensure dust and water protection?
It features an organ - type dust cover and oil seal proofing, including rotary table waterproof treatment. This helps protect the internal components from dust, debris, and water, ensuring the machine's longevity and stable performance.
