5-axis CNC machining
Description
Technical Parameters
Products Description

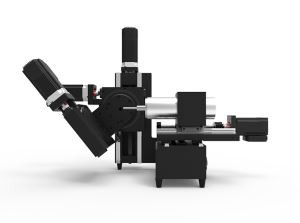

5-axis CNC machining is a high-precision milling process that is suitable for a variety of materials such as plastics, aluminum alloys, wood, copper, gold, silver and wax, and is widely used in industries such as aerospace, automotive, medical and jewelry design. It can achieve the processing of complex geometries and fine parts in a single setup, effectively reducing manual intervention and improving production efficiency. Different materials can quickly change the tool head without the need for a wrench, simplifying operation and setup.
5-axis CNC machining is upgrade version use No.57 servo motor, normal motor movement speed within 2.5m/min, and servo speed can be within 12m/min, servo no noise, high reaction, positioning accuracy, warning with no steps.
Desktop NC support to mill material as common plastics, Al alloy, Wood, Copper, Gold, Silver, Wax, different materials
can use different tool bit, without use wrench, easy operation.
Test video
A five-axis CNC test project purchased by the MIT intelligent robot team.
(Several projects designed by the team, including MIT Mini Cheetah: https://www.youtube.com/watch?v=xNeZWP5Mx9s https://www.youtube.com/watch?v=G6fMV1UPzkg and the fastest Rubik's Cube solution in the worldRobot question: https://www.youtube.com/watch?v=nt00QzKuNVY uses Pocket NC machines to manufacture parts for similar robot projects.)
Tech Specs
|
Total dimesion |
600*350*400mm |
Table dimension |
115mm |
|
Total weight |
20kg |
Max table weight |
37kg |
|
X,Y,Zaxis effective Movement |
X130*Y150*Z90 |
A,C rotating effective movement |
A:-20±110°,C:360° |
|
Three axis Effective Machining area |
X130*Y150*Z90 |
Table max load weight |
5kg |
|
Five axis Effective Machining area |
X120*Y120*Z90 |
Three axis resolution |
0.03mm |
|
A,C axis rotating data |
1:50 grinding worm reducer Cross rolling rotating bearing |
Three axis ball screw |
1204 C7 ball screw |
|
Five axis resolution |
0.1mm |
Linear guide |
X:Hiwin MGH12,Y:Hiwin MGH12,Z:Hiwin HGH20 |
|
Frame |
6061T6 AI+ |
Machining speed |
2500mm/min(different material have different speeds) |
|
Main axis type |
Φ65mm400W water cooling motorized spindle, 8000rpm/min |
Parts fixture |
Whole set, reservation hole Drilling/milling/tapping |
|
Dust proof |
Organ type dust cover Oil seal dust proof(rotary table water proof treatment) |
Tool dimension |
ER11 1-7mm |
|
Stoke motor |
574.0A power step motor |
Spindle motor |
400W brushless motor |
|
Return home |
High precision photoelectric induction switch |
Control PCB |
USB control PCB support RTCP |
|
Driving |
324.0A Integrated drive board |
Power supply |
220V input 36V/20A output |
|
Material |
Plastics,AI alloy, Wood, Copper, Gold, Silver, Wax, etc |
||
|
total dimension |
650*400*450mm |
table dimension |
140*130mm |
|
total weight |
60kg |
max table weight |
74kg |
|
x,y,z axis effective |
x160*y200*z125 |
a,c,rotating effective movement |
A:±10° C:360° |
|
effective machining area |
x150*y150*z125 |
a,caxis rotaing data |
1:50 grinding worm reducer cross rolling rotating bearing |
|
three axis ball screw |
x&z:1204 c7 y:1605 c7 |
linear guide |
x:hiwin mgn 12,y:hiwin mgn 15, z：hiwin hgh20 |
|
frame |
6061T6 AI +45 quenched & tempered steel |
machining speed |
2500mm/min(different material have different speeds) |
|
main axis type |
Φ65mm 800W water cooling motorized spindle, 24000r/min |
parts fixture |
steel fixture, reservation holeer50 fixture stand, 63,80chuck |
|
dust proof |
organ typedust cover oil seal proof (rotary table waterproof treatment) |
tool dimefension |
ER110-7mm |
|
material |
plastics,ai alloy,wood,copper,gold,silver,wax,etc. |
||
Metal enclosure V3-Enclosure
V3 sheet metal shell, color black, 2.5mm thick aluminum plate, 750*500*600mm
The rotary is changed from worm gear to harmonic reducer and Z axis from single linear rail to dual linear rails.
BLDC Servo Motor and C5 Ball Screws, HIWIN Linear Rails are the standard offer.
Is this five-axis CNC machine suitable for complex processing?
Contact Us : xslightings@xslightings.com http://www.xinshan.cc
FAQ
What is 5-axis CNC machining?
5-axis machining refers to a machine's ability to move a tool or a part in five different axes simultaneously. Basic machining operates on three primary axes, X,Y, and Z; however, a 5-axis CNC machining tool can rotate two additional axes, A and B, which give the cutting tool a multidirectional approach.
What can I make with a 5-axis CNC machine?
Various industries rely on shops with high-performance 5-axis CNC machines to produce sophisticated parts requiring tight tolerances. Aerospace – Typical aerospace components produced by 5-axis CNC tools include valves and turbine blades requiring precise execution on complex geometries.
What is the difference between 3 and 5-axis CNC?
A 3-axis CNC and 5-axis CNC differ in their ability to orient and move the cutting tool along multiple axes. A 3-axis CNC machine is capable of moving its cutting tool along the X, Y, and Z axes. A 5-axis machine, on the other hand, can move the cutting tool along the X, Y, Z, A, and B axes.
What is 5-axis CNC coordinate system?
The five axes in CNC machining are paths that the parts or tools can move along simultaneously. The main axes: X, Y, and Z, are part of the basic Cartesian Coordinate System first proposed by the mathematician and philosopher, Rene Descartes in the 1500s.
What are the applications of 5-axis CNC machine?
5-axis CNC machines can create parts with smooth shapes and contoured edges efficiently and accurately. Applications of aerospace industry require intricate geometries, light weight, and durability. 5-axis CNC machining allows manufacturers to make those high precision parts.
