Desktop 5-axis Milling Machine
Description
Technical Parameters
Products Description

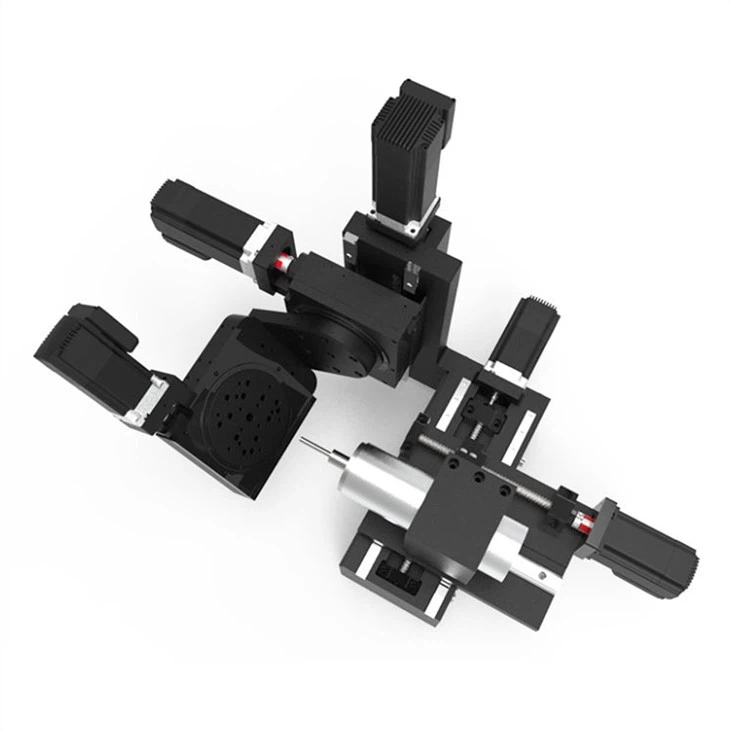

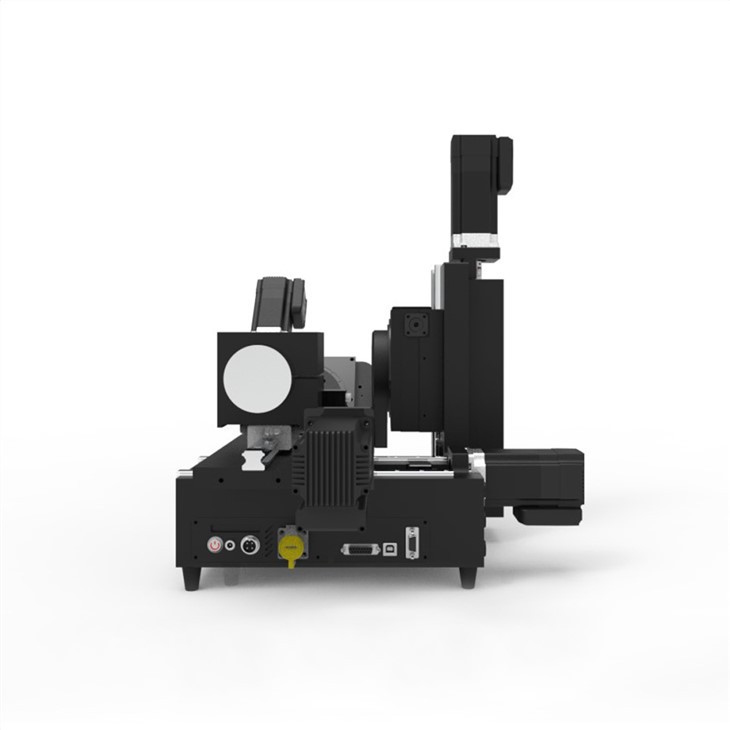

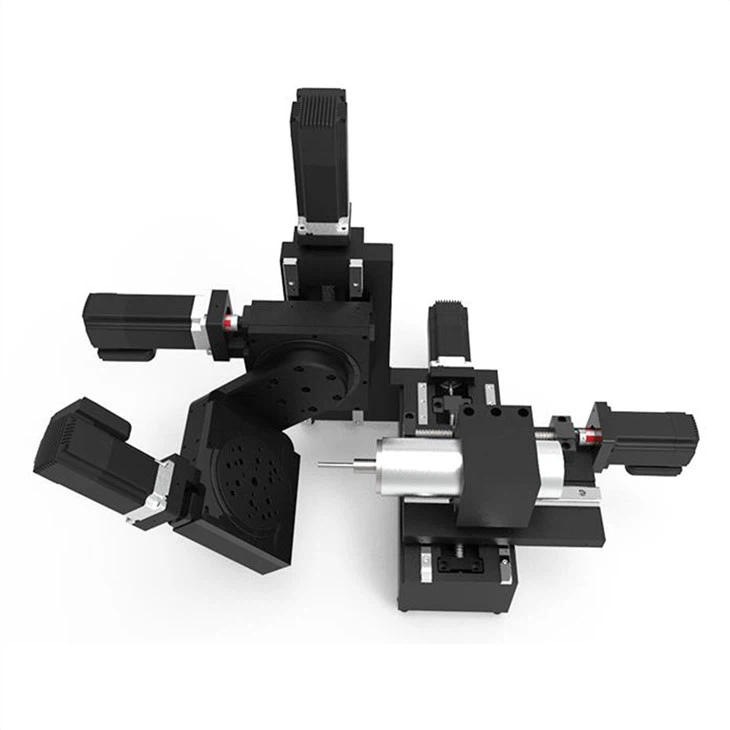

The Desktop 5-Axis Milling Machine is a compact and versatile precision tool for advanced machining. It features five-axis capability in a desktop format, enabling high-accuracy production of intricate parts. Ideal for prototyping and small-scale manufacturing, it supports milling various materials such as plastics, aluminum alloys, wood, copper, gold, silver, and wax. The machine offers exceptional precision and efficiency, with easy operation through interchangeable tool bits, eliminating the need for wrenches.
Five-Axis Capability: Provides exceptional precision for the production of intricate and complex components, enabling multi-dimensional machining with high accuracy and detail.
Compact Desktop Design: Combines cutting-edge milling technology with a space-saving footprint, perfect for both prototyping and small-scale manufacturing, offering robust performance in a compact form.
User-Friendly Tool Bit System: Features a quick-change tool bit system that streamlines the process of switching between different tools, eliminating the need for additional tools and enhancing operational efficiency.
Versatile Material Processing: Accommodates a wide range of materials, including plastics, aluminum alloys, wood, copper, gold, silver, and wax, allowing for diverse applications and customization in manufacturing.
Test video
A five-axis CNC test project purchased by the MIT intelligent robot team.
(Several projects designed by the team, including MIT Mini Cheetah: https://www.youtube.com/watch?v=xNeZWP5Mx9s https://www.youtube.com/watch?v=G6fMV1UPzkg and the fastest Rubik's Cube solution in the worldRobot question: https://www.youtube.com/watch?v=nt00QzKuNVY uses Pocket NC machines to manufacture parts for similar robot projects.)
Tech Specs
| Total Dimension | Table Dimension |

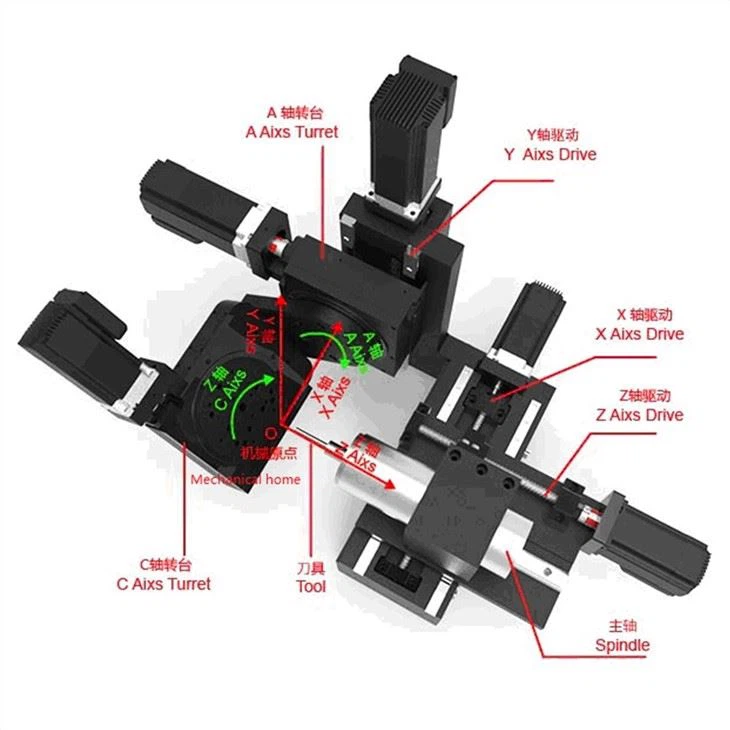

A,C, rotating effective movement |
A,C axis rotaing data |
| 650*400*450mm | 140*130mm | A:±10° C:360 | 1:50 grinding worm reducer cross rolling rotating bearing |
| Total Weight | Max Table weight | Three Axis Ball Screw | Linear Guide |
| 60kg | 74kg | x&z:1204 c7 y:1605 c7 | x:hiwin mgn 12,y:hiwin mgn 15, z：hiwin hgh20 |
| x,y,z axis Effective | Effective Machining Area | Frame | Machining Speed |
| x160*y200*z125 | x160*y200*z125 |
6061T6 AI +45 quenched & tempered steel |
2500mm/min(different material have different speeds) |
| Main Axis Type | Parts Fixture | Dust Proof | Tool Dimefension |
|
Φ65mm 800W water cooling motorized spindle, 24000r/min |
steel fixture, reservation holeer 50 fixture stand, 63,80chuck |
organ typedust cover oil seal proof (rotary table waterproof treatment) |
ER110-7mm |
Product Advantages
Precision and Detail: The five-axis capability ensures exceptional accuracy, allowing for the production of intricate and complex components with fine detail.
Space-Efficient Design: Its compact desktop format makes it ideal for environments with limited space, offering advanced milling functionality without requiring a large workspace.
Versatile Material Compatibility: Capable of machining a wide range of materials including plastics, aluminum alloys, wood, copper, gold, silver, and wax, catering to diverse manufacturing needs.
Efficient Tool Change: The user-friendly quick-change tool bit system allows for easy swapping of tool bits without the need for wrenches, enhancing operational efficiency and flexibility.
Enhanced Workflow: Streamlined design and advanced technology support both prototyping and small-scale production, providing reliable performance and flexibility for various applications.
Application
Prototyping: Ideal for creating precise prototypes for product development, allowing engineers and designers to quickly test and refine their designs.
Custom Parts Manufacturing: Suitable for producing intricate and custom components for various industries, including aerospace, automotive, and medical devices.
Jewelry Making: Enables the detailed and accurate machining of fine jewelry pieces from materials like gold, silver, and wax, facilitating high-quality craftsmanship.
Educational Use: Perfect for educational institutions and training programs to teach students and professionals advanced machining techniques and principles.
No matter what you need, please feel free to contact us.
Contact Us : xslightings@xslightings.com
fAQ
1. What types of materials can the Small 5 Axis CNC process?
The machine can handle a variety of materials including plastics, aluminum alloys, wood, copper, gold, silver, and wax, making it versatile for different applications.
2. How accurate is the Desktop 5-Axis Milling Machine?
The machine offers exceptional precision for intricate and complex part production, achieving high accuracy and detailed results due to its five-axis capability.
3. Can the Small 5 Axis CNC be used for prototyping?
Yes, it is ideal for prototyping, allowing engineers and designers to create precise models and test designs efficiently in a compact format.
4. How does the quick-change tool bit system work?
The machine features a user-friendly quick-change tool bit system that allows for easy swapping of tool bits without the need for wrenches, enhancing operational efficiency.
5. Is the Desktop 5-Axis Milling suitable for small-scale production?
Absolutely. Its compact design and advanced technology make it well-suited for small-scale production, offering robust performance in a space-efficient format.
