Desktop Pocket Nc 5 Axis Cnc Mill
Desktop NC is 5 axis digital machine tool. Controlled by Windows system, use CAD or CAM to mill. Desktop NC support G code control as well. As pocket size, five axis motor main axis have speed 0-24000rpm, enough for professional designer basic application. Equipment size:600x400x510mm
bed dimension:φ100mm
Maximum payloadof the work table:5kg
speed 0-24000rpm
Windows System Control
Support G code control
CAD or CAM milling
Description
Technical Parameters
Products Description
The Desktop pocket nc 5 axis cnc mill redefines desktop manufacturing by combining full 5-axis machining capability with compact, benchtop-friendly design. Born from a vision to go beyond plastic 3D printing-enabling precise cutting of organic materials and metals-this innovative mill won a blue ribbon at Maker Faire 2013 and gained global attention via its highly successful Kickstarter campaign. It empowers makers, hobbyists, and small-scale workshops to create intricate, multi-detail-plane parts with professional-grade surface finish, eliminating the limitations of traditional 3-axis desktop machines.
Why choose Pocket NC?
Full 5-axis machining for complex parts: Compared to 3-axis desktop milling machines, which struggle with multi-angle cutting and organic shapes, its X/Y/Z/A/B axis combination enables machining of highly detailed flat parts (such as curved metal parts and precision mechanical parts) without requiring workpiece repositioning, eliminating manual clamping errors and ensuring consistent accuracy across the entire part.
Compact size with industrial-grade precision: The desktop design avoids the bulk of industrial 5-axis machines while maintaining professional precision. 0.000125-inch linear resolution and 0.025° rotational resolution ensure stable production of fine details (such as thin walls and tight tolerances), while ultra-low spindle runout of 0.000078-inch eliminates tool shake and reduces post-processing time.
Broad material compatibility, transcending the limitations of plastics: It can cut metals (aluminum, brass, mild steel), wood, acrylic, and composite materials, flexibly adapting to a variety of project needs, including custom hardware, prototypes, jewelry, and functional mechanical parts.
Suitable for all users: The BeagleBone Black controller is intuitive to use, requiring no advanced CNC experience for basic use. It supports Fusion 360 (an easy-to-use CAD/CAM tool) or direct G-code input, and is compatible with Windows, macOS, and Linux systems, catering to the diverse workflows of both novice and professional users.
A five-axis CNC test project purchased by the MIT intelligent robot team.
(Several projects designed by the team, including MIT Mini Cheetah: https://www.youtube.com/watch?v=xNeZWP5Mx9shttps://www.youtube.com/watch?v=G6fMV1UPzkg and the fastest Rubik's Cube solution in the worldRobot question: https://www.youtube.com/watch?v=nt00QzKuNVY uses Pocket NC machines to manufacture parts for similar robot projects.)
Tech Specs
| Packing Size | W800xD600xH800mm | Packing weight | 100-120kg |
| Equipment size | W600xD400x H510mm | weight of equipment | Net weight of 45kg,with sheet metal of 75kg |
| Bed Dimension | φ100mm | Maximum payload of the work table |
5kg |
| XYZ effective travel | X160xY200xZ130mm | AC effective travel | A:-30-120°,C 360° |
| Three axis processing range | X160xY200xZ125mm | Five axisprocessing range | Cylinder:φ 150 H105mm,φ 100 H120mm,cube W125D 125 H110mm |
| Three-axis processing accuracy | Linear axis parallelism & vertical degree of 0.03mm, Travel range is 0.02mm |
Five axis processing accuracy | Linear axis parallelism &vertical degree of 0.05mm, Fve-axis spatial accuracy of<0.05mm |
| XYZ Ball wire rod | X&Z:1204C7,Y:1604 C7,up gradable C5 | AC axis |
1:80 20 Harmonic reducer return<1' |
| The XYZ linear guide rail | X&Z Hiwin MGN12 Y:Hiwin MGN15 | body frame | 6061T6 aviation aluminum+stressed component adjustment of 45 steel |
| Processing speed | 4000mm/min vary by material | ||
| principal axis | φ65mm 800W Water-cooled electric spindle at 24,000r /min |
protect | Organ is dust-proof +oil seal is waterproof and dustproof |
| Tool diameter& length | ER11.0-8mm,≤75mm | Part fixtures | Steel fixture with reserved hole position Can add er50 clip holder,63,80 card |
| work material | Metal:aluminum alloy.copper alloy,gold alloy,silveralloy.*steel,*titanium alloy | / | Non-metat plastic,wood,wax,jade,glass etc |
Shipping List
| Order Number | Type | Name | Explain | Quantity |
| 7 | Equipment | Main Engine | Naked machine does not contain sheet metal |
1 |
| 2 | Material Fixtures | Type A: self-centering platform pliers |
8-55mm square ping | 1 |
| 3 | Knife Fixture | ERlI clamp cylinder | ER11-4&ER11-6 | 1 |
| 4 | Cutter | Sharp knife,vertical miling cutter,ball knife |
0.2mm sharp knife (for carving)10 2,4,6mm vertical milling cutter 2, R ball knife 2 |
18 |
| 5 | Electrical | power box | Motor control frequengy converter | 1 |
| 6 | power line | Total power supply for equipment | 1 | |
| 7 | USB data wire | Connect the computer to the host machine | 1 | |
| 8 | Electronichand wheel | Operation shaft movement | 1 | |
| 9 | Tool | 1 set of inner agon wrench | 1.5-109PCS | 1 |
| 10 | A set of spindle wrench | 14 &17mm open-wrench | 1 | |
| 1 | Material | Generation wood 4 pieces | Practice with | 1 |
Options and upgrades
| Order Number | Type | Name | Explain | Quantity |
| 1 | Transmission | Domestic grinding of C5 silk rod | 1204 &1604 | 3 |
| 2 | Prindpal axis | 40000r pm | Also power 800W 65mm diameter | 1 |
| 3 | Knife Fixture | Spindle ER11 clip cartridge | 2~8mm full set | 10 |
| 4 | Square Material Fixture | A self-centering clamp reverse clamp | 50-75mm clamp range | 1 |
| 5 | B increase self-centering pliers | 0-100 mm clamp range | 1 | |
| 6 | Stick fixture | Hand tight 80 clamp (four paws) |
Occupying height 48mm travel,can hold the rod material &square material |
1 |
| 7 | Metalworking 80 chuck (three caws) |
The height of 66mm travel,the centricity is better than the four daws |
1 | |
| 8 | ER40 splint | High grip concentricity,used with ER40 | 1 | |
| / | (ER50,ER40 two optional one) | Cartridge (Clamp-holding Φ 4to 30 mm) | ||
| 9 | One set of ER40 clips | 6.8.10.12.15.18.20.25.28.30mm Clamp cylinder (corresponding to same diameter) |
10 | |
| 10 | ER50 splint | Use with ER50 cartridge (damp Φ 4-36mm) | 1 | |
| 11 | ER50 cartridge optional model | Within 4-36 mm of optional size,70 yuan each | 1 |
pocket nc 5 axis Manufacturer
why choose our products
●High Precision and High Performance
The machine is equipped with RTCP technology for 5-axis simultaneous machining. Combined with a high-speed, stable spindle and precision transmission system, it can process complex curved surfaces, undercuts, and other parts that are difficult for 3-axis machines. This eliminates the need for multiple clamping and positioning errors, meeting high-precision machining requirements.
●Efficient and Compact Design Reduces Costs
The machine features a vertical, compact structure that saves space. Integrated features such as automatic tool change and power-off resume engraving improve machining efficiency, reduce labor and tool consumption, and lower long-term costs, enabling efficient production even in small spaces.
●Fully Adaptable + Easy to Operate, Covering Multiple Industries
Supporting multi-material machining and compatible with mainstream design software, the user interface is intuitive and easy for beginners. Available in educational and industrial versions, it is suitable for teaching, R&D, production, and other scenarios, allowing one machine to meet diverse needs.
●Global Service + High Reliability Ensures Stable Production
With branches and distributors worldwide, we provide 24-hour online response and on-site maintenance. The machine's rugged and stable construction ensures long-term continuous operation, eliminating after-sales concerns and the risk of production interruptions.
Application of procket nc cnc
Makers & Hobbyists: Create custom 3D-printed part enclosures, mechanical model components, or personalized metal crafts with precision.
Small Workshops & Startups: Prototype functional metal parts (e.g., drone frames, small engine components) without outsourcing to industrial facilities, cutting development time and costs.

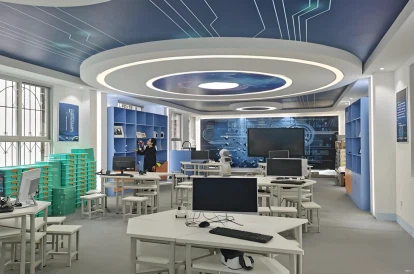

Educators & Students: Teach 5-axis machining principles in classrooms-its compact size and user-friendly interface make it safe and approachable for learning environments.
Jewelry & Custom Fabrication: Machine intricate metal designs (e.g., rings, pendants) with smooth surfaces, reducing the need for hand-finishing.
Video: https://youtu.be/TNFE7E83VMU
Contact us : xslightings@xslightings.com
wechat id:13305858081
FAQ
1. What complex parts can the machine process? Can it handle structures that are difficult for conventional 3-axis machines?
It can easily process curved surfaces, undercuts, and multi-faceted parts. Leveraging 5-axis simultaneous linkage technology, it eliminates the need for multiple clamping and avoids the processing challenges associated with positioning errors with 3-axis machines. Its high-precision performance meets the molding needs of complex structures.
2. Does the machine take up space in a small workshop or laboratory? Does it require special installation requirements?
The machine features a vertical, compact design, requiring far less floor space than traditional industrial-grade 5-axis machines. It can be placed on a regular desktop or small workbench. Installation requires no complex infrastructure; simply plug in a standard power source and it's ready to go, making it suitable for use even in limited spaces.
3. Is it complex to operate? Can beginners or students quickly get started?
It's easy to use, featuring an intuitive touchscreen and visual programming interface. It's compatible with mainstream design software, eliminating the need to learn a completely new system. New users can operate it with basic training, and educational institutions can quickly implement courses.
4. Will after-sales service be prompt in the event of subsequent equipment failure or maintenance? Is service guaranteed when purchasing overseas?
We have branches and distributors around the world, offering 24/7 online support. We provide on-site maintenance in China and localized service support overseas. The equipment is highly stable and easy to maintain, effectively minimizing downtime, eliminating the need to worry about after-sales delays.
5. Are suitable models available for teaching and small-batch production? Or is the industrial grade the only option?
We offer both educational and industrial grades. The educational grade is suitable for teaching, while the industrial grade meets production needs. Both versions support multi-material processing and core functions, allowing you to choose the model based on your specific application, eliminating the need to purchase high-cost models for a single purpose.
