Small 5 Axis CNC
Spindle: 24,000 rpm high speed

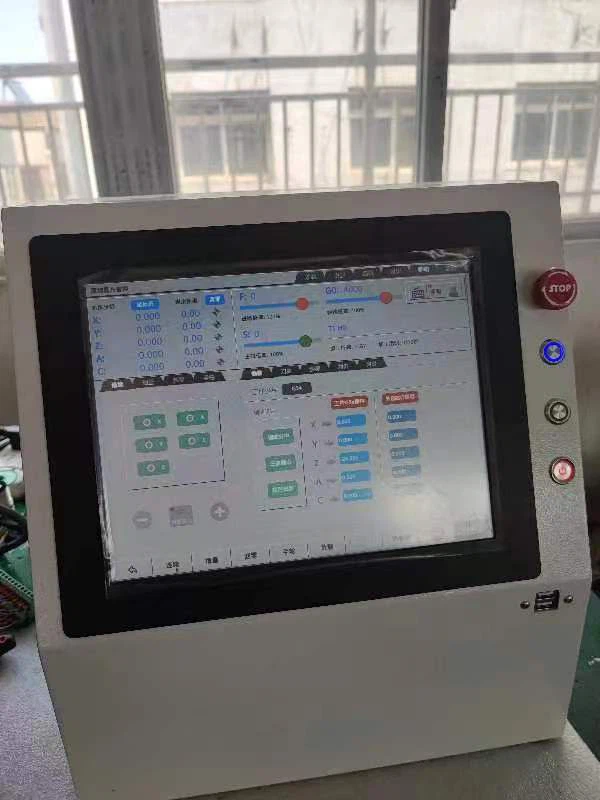

Touch screen computer operation
Precision transmission parts
Integrated housing
Description
Technical Parameters
Products Description
Small 5 Axis CNC
The Desktop NC 5-Axis CNC machine offers robust performance in a compact form, engineered for versatile five-axis machining with RTCP. It excels in handling both metals like aluminum alloys and non-metals such as plastics, making it an ideal choice for small businesses, independent designers, educational institutions, and research labs. Its space-efficient design ensures precision machining while fitting seamlessly into smaller environments.
Five-Axis Machining Capability
Enables simultaneous five-axis machining, allowing for the precise fabrication of intricate parts from multiple angles, enhancing overall manufacturing flexibility.
Compact Design
Features a desktop-friendly compact design with a minimal footprint, ideal for smaller workspaces while delivering robust machining performance.
Material Versatility
Capable of processing a range of materials, including metals (like aluminum alloys) and non-metals (such as plastics), accommodating diverse production requirements.
RTCP Technology
Equipped with RTCP (Rotational Tool Center Point Control) for ensuring high precision and stability during complex five-axis operations.
Specs
| Packing Size | W800xD600xH800mm | Packing weight | 100-120kg |
| Equipment size | W600xD400xH510mm | weight of equipment | Net weight of 45kg,with sheet metal of 75kg |
| bed dimension | φ100mm | Maximum payload of the work table |
5kg |
| XYZ effective travel | X160xY200xZ130mm | AC effective travel | A:-30-120°,C 360° |
| Three axis processing range | X160xY200xZ125mm | Five axisprocessing range |
Cylinder:φ 150 H105mm,φ 100 H120mm,cube W125D 125 H110mm |
| Three-axis processing accuracy | Linear axis parallelism & vertical degree of 0.03mm, Travel range is 0.02mm |
Five axis processing accuracy |
Linear axis parallelism &vertical degree of 0.05mm, Fve-axis spatial accuracy of<0.05mm |
| XYZ ball wire rod | X&Z:1204C7,Y:1604 C7,up gradable C5 | AC axis |
1:80 20 Harmonic reducer return<1' |
| The XYZ linear guide rail | X&Z Hiwin MGN12 Y:Hiwin MGN15 | body frame | 6061T6 aviation aluminum+stressed component adjustment of 45 steel |
| Processing speed | 4000mm/min vary by material | ||
| principal axis | φ65mm 800W Water-cooled electric spindle at 24,000r /min |
protect | Organ is dust-proof +oil seal is waterproof and dustproof |
| Tool diameter& length | ER11.0-8mm,≤75mm | Part fixtures | Steel fixture with reserved hole position Can add er50 clip holder,63,80 card |
| work material | Metal:aluminum alloy.copper alloy,gold alloy, silver Non-metat plastic,wood,wax,jade,glass alloy.*steel,*titanium alloy etc |
||
Shipping List
| Order Number | type | name | explain | quantity |
| 7 | equipment | main engine | Naked machine does not contain sheet metal |
1 |
| 2 | Material fixtures | Type A: self-centering platform pliers |
8-55mm square ping | 1 |
| 3 | Knife fixture | ERlI clamp cylinder | ER11-4&ER11-6 | 1 |
| 4 | cutter | Sharp knife,vertical miling cutter,ball knife |
0.2mm sharp knife (for carving)10 2,4,6mm vertical milling cutter 2, R ball knife 2 |
18 |
| 5 | electrical | power box | Motor control frequengy converter | 1 |
| 6 | power line | Total power supply for equipment | 1 | |
| 7 | USB data wire | Connect the computer to the host machine | 1 | |
| 8 | Electronichand wheel | Operation shaft movement | 1 | |
| 9 | tool | 1 set of inner agon wrench | 1.5-109PCS | 1 |
| 10 | A set of spindle wrench | 14 &17mm open-wrench | 1 | |
| 1 | material | Generation wood 4 pieces | Practice with | 1 |
Options and upgrades
| order number | type | name | explain | quantity |
| 1 | transmission | Domestic grinding of C5 silk rod | 1204 &1604 | 3 |
| 2 | prindpal axis | 40000r pm | Also power 800W 65mm diameter | 1 |
| 3 | Knife fixture | Spindle ER11 clip cartridge | 2~8mm full set | 10 |
| 4 | Square material fixture |
A self-centering clamp reverse clamp | 50-75mm clamp range | 1 |
| 5 | B increase self-centering pliers | 0-100 mm clamp range | 1 | |
| 6 | Stick fixture | Hand tight 80 clamp (four paws) |
Occupying height 48mm travel,can hold the rod material &square material |
1 |
| 7 | Metalworking 80 chuck (three caws) |
The height of 66mm travel,the centricity is better than the four daws |
1 | |
| 8 | ER40 splint | High grip concentricity,used with ER40 | 1 | |
| (ER50,ER40 two optional one) |
cartridge (Clamp-holding Φ 4to 30 mm) |
|||
| 9 | One set of ER40 clips | 6.8.10.12.15.18.20.25.28.30mm Clamp cylinder (corresponding to same diameter) |
10 | |
| 10 | ER50 splint | Use with ER50 cartridge (damp Φ 4-36mm) | 1 | |
| 11 | ER50 cartridge optional model | Within 4-36 mm of optional size,70 yuan each | 1 |
Function
High-performance spindle: 800w high power, 24000rpm high speed, efficient water cooling, shaft radial runout 3-5 μm.
High-precision accessories: rotary axis harmonic motor, linear axis DC servo motor + ball line rod + silver linear guide
Sheet metal chassis: noise reduction, waterproof treatment of key components, and cutting fluid circulation system
Simple operation: automatic tool setting, electronic handwheel
Low-cost manufacturing
Professional technical services: CAM programming and simulation guidance, computer training, fixture customization, accessories customization upgrade, etc.
* Recommended CAM software: PowerM sick, Fusion360, UG
* Post-processing program: Power Mill, UG, Fusion360 and HSM
* Motion simulation software: Power Mill, Vericut
Applications of 5-axis desktop NC
Micro-component manufacturing
Small 5-axis CNC machines are essential for producing micro-components with exceptional precision and intricate details. They are widely used in industries such as medical device manufacturing, jewelry design, and electronics to create precise and complex small parts, ensuring high product accuracy and quality.
Mold Manufacturing
Benchtop and desktop 5-axis CNC machines are vital in the mold manufacturing industry. They are employed to craft precision molds with detailed contours, crucial for applications like injection molding and die casting. The accuracy of these molds directly impacts the quality and consistency of the final products.
Dental Restoration
In the dental industry, small 5-axis CNC machines are used to create dentures, crowns, bridges, and implants. These machines provide the high precision and excellent surface finish needed for custom dental restorations, ensuring a perfect fit and enhancing patient comfort.
Educational Use
The 5-axis desktop CNC machine is a valuable educational tool, allowing students to practice CAD/CAM programming and advanced machining techniques. It helps learners gain a deep understanding of complex machining processes and develop skills applicable across various industries.
Research and Development
5-axis desktop CNC machines are extensively used in research labs and academic settings for prototyping, experimenting with new technologies, and exploring innovative manufacturing methods. They enable researchers to create custom components, test new designs, and drive technological advancement.
Customized production
Small-scale manufacturers and artisans increasingly use compact CNC machines to produce custom items with unique designs and features. These machines offer flexibility for producing small batches of high-value parts, catering to specialized markets and personalized products, and fostering the growth of customized production.
Video: https://youtu.be/TNFE7E83VMU xslightings@xslightings.com wechat id:13305858081
FAQ
What types of projects are best suited for a pocket nc 5 axis?
The Small 5-Axis CNC machine is ideal for projects requiring high precision and complex geometries, such as detailed prototypes, custom parts, jewelry, and intricate designs. It's well-suited for applications in prototyping, small-scale manufacturing, and fine craftsmanship.
How does the performance of a pocket nc 5 axis machine compare to larger models?
While smaller in size, a Small 5-Axis CNC machine offers comparable precision and versatility to larger models. It provides advanced multi-dimensional machining capabilities and high accuracy, though its size may limit the maximum workpiece dimensions.
Can a pocket nc 5 axis handle various materials?
Yes, it can handle a wide range of materials, including metals like aluminum and steel, as well as non-metals such as plastics and composites, making it versatile for different manufacturing needs.
How is 5 axis desktop NC different from traditional CNC milling?
It is smaller and more flexible, suitable for small batch and personalized processing needs; five-axis linkage can process more complex shapes, reduce processing steps and clamping times, and improve processing efficiency and precision
What are the main differences between Pocket Nc and traditional CNc machines?
Pocket Nc machines are compact, portable, and ofter simultaneous 5-axis machining capabiities, wheregs traditional cNc machines
may have fewer axes and are typically larger and stationary.
