Desktop 5 Axis Cnc Machine
Spindle: 24,000 rpm high speed
Touch screen computer operation
Precision transmission parts
Integrated housing
Description
Technical Parameters
Products Description

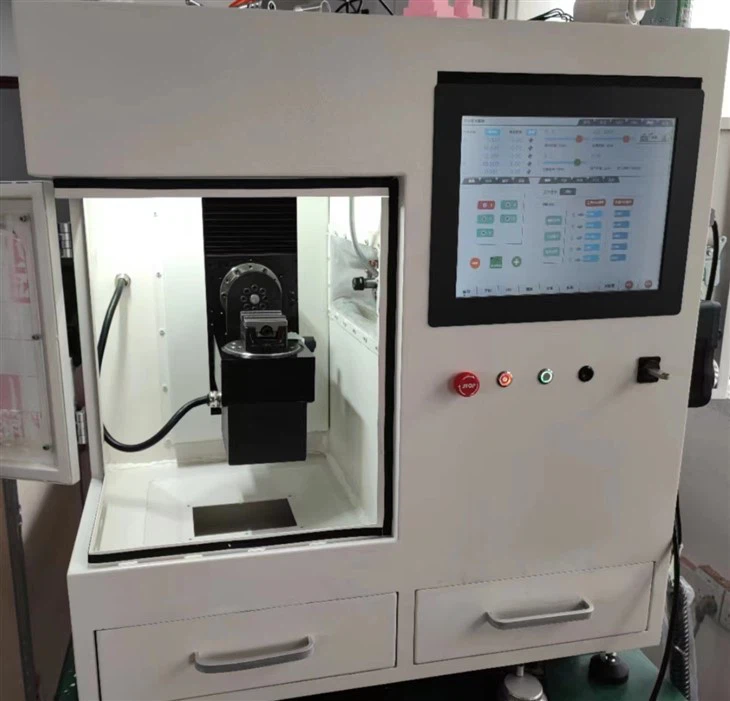

Desktop 5 Axis CNC Milling
The Desktop NC 5-axis is a versatile desktop CNC machine tool, featuring a compact design and robust five-axis processing capabilities with RTCP. It excels in processing both metallic materials like aluminum alloys and non-metallic materials such as plastics. This makes it an ideal choice for small businesses, individual makers, educational institutions, and laboratories, offering precision machining in a space-efficient package.
Powerful Spindle: Capable of high-speed operation up to 24,000 rpm, the spindle is water-cooled and ensures radial runout is maintained within a 3-5 micron range for precise machining.
Precision Components: Driven by a servo DC motor, the rotary axis employs a harmonic motor while the linear axis integrates a DC servo motor, ball screw, and linear guide, ensuring high accuracy and smooth motion.
Ease of Operation: Features such as automatic tool alignment for accurate and efficient setup, electronic handwheel control for flexibility, and a user-friendly touch screen interface make operation straightforward and intuitive.
Industrial-Grade Quality: Equipped with wireless probe support, a comprehensive coolant circulation system, and a robust power-off recovery engraving function, ensuring reliability and efficiency in demanding industrial applications.
Specs
| Packing Size | W800xD600xH800mm | Packing weight | 100-120kg |
| Equipment size | W600xD400x H510mm | weightof equipment | Net weight of45kg,with sheet metal of 75kg |
| bed dimension | φ100mm | Maximum payload of the work table |
5kg |
| XYZ effective travel |
X160xY200xZ130mm | AC effective travel | A:-30-120°,C 360° |
| Three axis processing range | X160xY200xZ125mm | Five axisprocessing range |
Cylinder:φ 150 H105mm,φ 100 H120mm,cube W125D 125 H110mm |
| Three-axis processing accuracy | Linear axis parallelism & vertical degree of 0.03mm, Travel range is 0.02mm |
Five axis processing accuracy |
Linear axis parallelism &vertical degree of 0.05mm, Fve-axis spatial accuracy of<0.05mm |
| XYZ ball wire rod | X&Z:1204C7,Y:1604 C7,up gradable C5 | AC axle |
1:80 20 Harmonic reducer return<1' |
| The XYZ linear guide rail | X&Z Hiwin MGN12 Y:Hiwin MGN15 | body frame | 6061T6 aviation aluminum+stressed component adjustment of 45 steel |
| Processing speed | 4000mm/min vary by material | ||
| principal axis | φ65mm 800W Water-cooled electric spindle at 24,000r /min |
protect | Organ is dust-proof +oil seal is waterproof and dustproof |
| Tool diameter& length | ER11.0-8mm,≤75mm | Part fixtures | Steel fixture with reserved hole position Can add er50 clip holder,63,80 card |
| work material | Metal:aluminum alloy.copper alloy,gold alloy, silver Non-metat plastic,wood,wax,jade,glass alloy.*steel,*titanium alloy etc |
||
Shipping List
| order Number | type | name | explain | quantity |
| 7 | equipment | main engine | Naked machine does not contain sheet metal |
1 |
| 2 | Material fixtures | Type A: self-centering platform pliers |
8-55mm square ping | 1 |
| 3 | Knife fixture | ERlI clamp cylinder | ER11-4&ER11-6 | 1 |
| 4 | cutter | Sharp knife,vertical miling cutter,ball knife |
0.2mm sharp knife (for carving)10 2,4,6mm vertical milling cutter 2, R ball knife 2 |
18 |
| 5 | electrical | power box | Motor control frequengy converter | 1 |
| 6 | power line | Total power supply for equipment | 1 | |
| 7 | USB data wire | Connect the computer to the host machine | 1 | |
| 8 | Electronichand wheel | Operation shaft movement | 1 | |
| 9 | tool | 1 set of inner agon wrench | 1.5-109PCS | 1 |
| 10 | A set of spindle wrench | 14 &17mm open-wrench | 1 | |
| 1 | material | Generation wood 4 pieces | Practice with | 1 |
Options and upgrades
| order number | type | name | explain | quantity |
| 1 | transmission | Domestic grinding of C5 silk rod | 1204 &1604 | 3 |
| 2 | prindpal axis | 40000r pm | Also power 800W65mm diameter | 1 |
| 3 | Knife fixture | Spindle ER11 clip cartridge | 2~8mm full set | 10 |
| 4 | Square material fixture |
A self-centering clamp reverse clamp | 50-75mm clamp range | 1 |
| 5 | B increase self-centering pliers | 0-100 mm clamp range | 1 | |
| 6 | Stick fixture | Hand tight 80 clamp (four paws) |
Occupying height 48mm travel,can hold the rod material &square material |
1 |
| 7 | Metalworking 80 chuck (three caws) |
The height of 66mm travel,the centricity is better than the four daws |
1 | |
| 8 | ER40 splint | High grip concentricity,used with ER40 | 1 | |
| (ER50,ER40 two optional one) |
cartridge (Clamp-holding Φ 4to 30 mm) |
|||
| 9 | One set of ER40 clips | 6.8.10.12.15.18.20.25.28.30mm Clamp cylinder (corresponding to same diameter) |
10 | |
| 10 | ER50 splint | Use with ER50 cartridge (damp Φ 4-36mm) | 1 | |
| 11 | ER50 cartridge optional model | Within 4-36 mm of optional size,70 yuan each | 1 |
Function
High-performance spindle: 800w high power, 24000rpm high speed, efficient water cooling, shaft radial runout 3-5 μm.
High-precision accessories: rotary axis harmonic motor, linear axis DC servo motor + ball line rod + silver linear guide
Sheet metal chassis: noise reduction, waterproof treatment of key components, and cutting fluid circulation system
Simple operation: automatic tool setting, electronic handwheel
Low-cost manufacturing
Professional technical services: CAM programming and simulation guidance, computer training, fixture customization, accessories customization upgrade, etc.
* Recommended CAM software: PowerM sick, Fusion360, UG
* Post-processing program: Power Mill, UG, Fusion360 and HSM
* Motion simulation software: Power Mill, Vericut
Applications of 5-axis desktop NC
Micro-component manufacturing
Small 5-axis CNC machines are frequently employed to create micro-components featuring high precision and elaborate details. Industries such as medical device production, jewelry design, and the electronics sector depend greatly on these machines to fabricate precise and complex small parts, thus ensuring product accuracy and quality.
Mold Manufacturing
Benchtop and desktop 5-axis CNC machines play a crucial role in the mold manufacturing process. They are specifically employed to fabricate precision molds with intricate contours. In industries like injection molding and die casting, the accuracy of the mold directly influences the quality and uniformity of the final product
Dental Restoration
Small 5-axis CNC machines are extensively utilized in the dental field to manufacture dentures, crowns, bridges and implants. These machines offer the high precision and superb surface finish necessary for creating custom dental restorations, guaranteeing a flawless fit and enhancing patient comfort and experience.
Educational Use
The 5-axis desktop NC serves as a valuable teaching aid in an educational environment, offering students the chance to practice CAD/CAM programming and advanced machining methods. These machines assist students in gaining a profound understanding of complex machining procedures and developing practical skills that are applicable across various industries.
Research and Development
5-axis desktop NCs are extensively utilized in research laboratories and academic institutions for conducting experiments, prototyping new technologies, and exploring innovative manufacturing procedures. These machines empower researchers to efficiently fabricate custom components, test new designs, and promote technological progress and innovation.
Customized production
Small-scale manufacturers and craftspeople are increasingly relying on pocket-sized CNC machines to produce custom products with unique forms and capabilities. These machines display great adaptability in manufacturing small quantities of high-value parts, meeting the requirements of specialized markets and personalized items, and advancing the growth of customized production.
FAQ
What is a desktop five-axis CNC machine?
A desktop five-axis CNC machine is a relatively small CNC processing equipment that can be placed on a desktop for operation. It has a linkage function of five axes and can achieve high-precision processing of complex-shaped workpieces.
What are the application fields of desktop five-axis CNC machine tools?
It is widely used in small precision parts processing, jewelry design and production, dental restoration manufacturing, mold processing, scientific research and teaching and other fields.
What are its advantages?
The advantages include small footprint, suitable for places with limited space; relatively simple operation and easy to use; five-axis linkage can process complex shapes, improve processing accuracy and efficiency; relatively low cost, suitable for small enterprises and individual users.
How is 5 axis desktop NC different from traditional CNC milling?
It is smaller and more flexible, suitable for small batch and personalized processing needs; five-axis linkage can process more complex shapes, reduce processing steps and clamping times, and improve processing efficiency and precision
What are the main differences between Pocket Nc and traditional CNc machines?
Pocket Nc machines are compact, portable, and ofter simultaneous 5-axis machining capabiities, wheregs traditional cNc machines
may have fewer axes and are typically larger and stationary.
