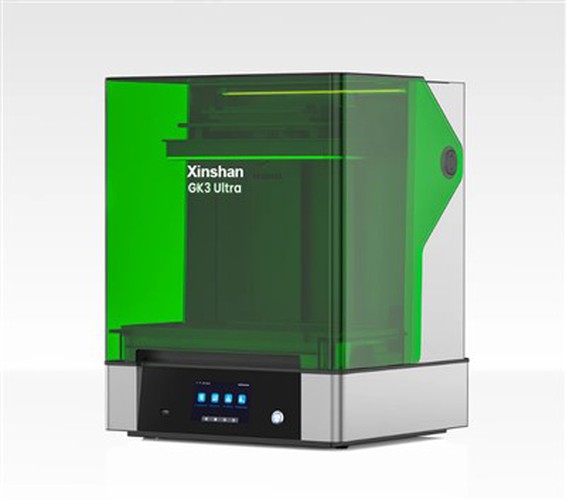

Resin 3D Printer For Dentistry

Resin 3D Printer For Dentistry

◆Technology: Liquid crystal light curing
◆Product size: 350*315*H455mm
◆Printing volume: 228*128*H245mm
◆HD resolution: 7680*4320
◆UI interface operation: touch screen
Send Inquiry
Add To Inquiry

Description

Technical Parameters

Products Description


Resin 3D Printer for Dentistry, as an innovative tool in the dental medical field, is reshaping the traditional diagnosis and treatment model. It uses advanced micro-stereolithography technology and is known for its high precision. It can accurately reproduce the fine structure of teeth, with printing accuracy reaching the micron level, ensuring that customized restorations perfectly fit the patient's mouth. Compatible with a variety of high-quality dental resins, it can meet various production needs from crowns and bridges to orthodontic appliances. The intelligent operation interface is convenient and efficient, allowing doctors to easily import scan data and accurately set parameters. Its compact design saves space and operates quietly. It can greatly shorten the restoration production cycle, ranging from hours to days, and also improves patient comfort and treatment effects with its excellent personalized customization capabilities. It is a key force in promoting oral medicine to move into a new era of digitalization and precision.











High-precision printing:
Employs advanced photolithography, 25-micron min. layer thickness, precisely replicates dental details, ensuring optimal restoration fit for crowns, bridges, orthodontics.

Multiple resin adaptation:
Supports diverse special dental resins like strong, tough, biocompatible porcelain and orthodontic types, meeting various oral treatment needs.

Intelligent operation interface:

Boasts intuitive touchscreen and smart software, enables easy data import, quick parameter setting, real-time progress monitoring, user-friendly without complex training.


Compact and silent design:

Compact build, space-efficient, ultra-quiet, suitable for dental clinics and hospital spaces, noise-free for patient and staff comfort.









Resin 3D Printer for Dentistry


    Product Specifications

Product Size:
350*315*H455mm
Power:
Print 120w, Heating 200w
Package Size:
445*420*550mm
UI Operation:
Touch screen
Package Weight:
19kg
File Format:
STL
Printing Volume:
228*128*H245mm
HD Resolution:
7680*4320
Rated capacity 800/1000/1150/1275kg
Light spot size:
29.6μm
Exposure time:
2-3s/layer(0.05mm)
Printing Tolerance:
±0.05
Technology:
LCD Photocuring
Layer Height:
0.03,0.05,0.1mm
Wavelength Range:
402.5-405mm
Resin Vat Capacity:
0.7kg
File Transfer:
USB
Constant Temperature:
25℃,30℃,35℃ automatic constant temperature system
Printer System:
Linux
Voltage:
110, 220V (produced on demand)




Resin 3D Printer for Dentistry

why choose our products





Personalized customization: With powerful 3D printing capabilities, various types of oral restorations and orthodontic appliances can be customized according to each patient's unique oral anatomy and treatment needs, truly realizing one-person-one plan, significantly improving treatment effects and patient outcomes. Satisfaction.

Efficient production: Compared with the traditional dental restoration manufacturing process, the production cycle is greatly shortened. It only takes a few hours from data acquisition to printing of the final product, which effectively reduces patient waiting time, improves the efficiency and service quality of dental clinics, and also reduces the inconvenience and cost for patients caused by multiple visits.

Improve the quality of restorations: High-precision printing ensures the accuracy and fit of restorations, reducing the risk of recurrence of oral problems caused by inappropriate restorations, such as crown loosening, food impaction, etc. At the same time, high-quality dental resin materials have good wear resistance, corrosion resistance and biocompatibility, extending the service life of restorations and providing more reliable protection for patients' oral health.

Facilitate doctor-patient communication: Through 3D printed tooth or oral tissue models, doctors can more intuitively display the condition and treatment plan to patients. Patients can more clearly understand their oral conditions and treatment processes, enhancing trust between doctors and patients. and understanding to promote the smooth implementation of treatment plans.




Precautions






Resin material storage

Dental resin materials should be stored in a cool, dry, light-proof environment to avoid high temperature, high humidity or direct sunlight that may cause resin performance degradation or deterioration. The opened resin material should be used as soon as possible, and the remaining part should be properly sealed and preserved.





Equipment cleaning and maintenance

Clean the inside of the printer regularly to remove residual resin, dust and other impurities to prevent them from affecting the printing quality and normal operation of the equipment. Especially the printing platform, material trough and other parts should be cleaned in time after each printing





Data accuracy

Ensure that the patient's oral scan data imported into the printer is accurate, and carefully check the model size, shape and other information before printing. If there is a deviation in the data, it will directly cause the printed restoration or model to be unable to be used normally, affecting the patient's treatment process.









FAQ





1.How long does it take for this printer to print a crown?
Generally, it takes about 30 minutes to 1 hour to print an ordinary crown, depending on the complexity of the crown, the printing accuracy setting, and the resin material used.



2.How strong is the printed restoration? Can it meet daily chewing needs?
The dental resin material used in our printer has high strength and toughness. After professional testing and clinical verification, the printed crowns, bridges and other restorations are fully able to withstand normal chewing pressure and perform stably and reliably during long-term use. However, be careful to avoid excessive chewing of hard objects to avoid damage to the restoration.

3.Is it compatible with the existing oral scanning equipment in my clinic?
Our Resin 3D Printer for Dentistry supports a variety of common oral scanning data formats, such as STL, etc. As long as your oral scanning equipment can output data in these standard formats, it can be seamlessly connected with our printer, allowing you to directly import the scanned data into the printer for model making.

4.What does the printer's after-sales service include?
We provide comprehensive after-sales services, including equipment installation and commissioning, operation training, free repairs within the one-year warranty period (non-human damage), regular return visits to understand the use of the equipment, and 7×24 hours of technical consulting services. After the warranty period, we can also provide you with paid maintenance, repair and upgrade services to ensure that your equipment is always in good operating condition.


5.
How to ensure hygiene and safety during printing?
The printer's material tank, printing platform and other parts that come into contact with the resin are made of easy-to-clean and corrosion-resistant materials, which are convenient for disinfection. Before and after each print, it is recommended to use a special cleaning solution to clean and disinfect these parts. At the same time, the printing process is carried out in a relatively closed environment, which can effectively reduce the intrusion of external dust, bacteria and other pollutants, ensuring that the printed restorations meet hygiene and safety standards.

6.
Is the consumables cost of this printer high?
Our dental resin consumables are competitively priced, and we also provide corresponding preferential packages based on different resin types and purchase volumes. Compared with traditional dental restoration production processes, after comprehensively considering factors such as production efficiency, restoration effect, and material utilization, the overall cost of using our Resin 3D Printer for Dentistry to produce dental restorations can be effectively controlled, bringing higher cost-effectiveness to your clinic.





Hot Tags: resin 3d printer for dentistry, China, suppliers, manufacturers, factory, custom, wholesale

Product Specifications


Product Size:
350*315*H455mm
Power:
Print 120w, Heating 200w
Package Size:
445*420*550mm
UI Operation:
Touch screen
Package Weight:
19kg
File Format:
STL
Printing Volume:
228*128*H245mm
HD Resolution:
7680*4320
Rated capacity 800/1000/1150/1275kg
Light spot size:
29.6μm
Exposure time:
2-3s/layer(0.05mm)
Printing Tolerance:
±0.05
Technology:
LCD Photocuring
Layer Height:
0.03,0.05,0.1mm
Wavelength Range:
402.5-405mm
Resin Vat Capacity:
0.7kg
File Transfer:
USB
Constant Temperature:
25℃,30℃,35℃ automatic constant temperature system
Printer System:
Linux
Voltage:
110, 220V (produced on demand)
