Desktop Plastic Injection Machine
◆ Maximun injection volume：10g
◆Temperature control range：50°C350°CAccuracy+1°C
◆Mold size：150*150mm(max)
◆injection spend：(5g PP material)one cycle every 12 seconds (excluding cooling)
◆Control system：Integrated control system/5 inch touch screen
◆Power：220/1kw
Description
Technical Parameters
Desktop Plastic Injection Machine is a precision equipment designed for small product development, personalized customization and small batch production, with compact structure and high performance. Its vertical mold and injection design saves space, and the direct pressure clamping technology ensures high precision and long life. It also supports the processing of various thermoplastic materials such as PP, ABS, POM, PA, TPU, etc. to meet diverse needs. The equipment adopts a hydraulic or servo drive system with a response speed of up to milliseconds. The turntable rotates as fast as 1.8 seconds to complete 120-degree positioning, which greatly improves efficiency. It is also equipped with intelligent temperature control (adjustable from 0-350℃) and pressure regulation functions to ensure the stability of the injection molding process and the consistency of the finished product. Some models integrate pneumatic assisted demolding and electric lifting modules, which significantly enhance the convenience of operation. It is especially suitable for the manufacture of precision parts such as USB interfaces, micro gears, and medical components.
| Project | Details |
| product | Desktop injection machine |
| Place of Origin | Mainland China |
| sort by color | M2 Deposit, M2 Final, M2 Machine |
| Plastic Machinery Type | All-electric injection molding machine |
Compact design and space adaptability
Adopting vertical or desktop structure, it is small in size and suitable for laboratories, small workshops or desktop scenes, without the footprint of traditional industrial-grade equipment.
Multi-scenario application and flexible adaptation
Supports small-batch production, prototype development and micro plastic parts manufacturing, compatible with rapid mold replacement, and meets diverse needs such as education, R&D, and personalized product customization.
Energy-saving and efficient and intelligent control
Reduce energy consumption through servo motors or all-electric drive technology, integrate automated processes (such as mold opening and closing, injection pressure adjustment), reduce manual intervention and improve stability.
Operation-friendly and safe
Equipped with intuitive control panel or digital interface, supports manual/automatic mode switching, built-in safety protection mechanisms (such as emergency stop, overload protection), suitable for non-professional users.
Wide material compatibility
Can handle a variety of thermoplastics such as PP, ABS, PVC, PC, TPU, etc., adapt to different melting temperatures and fluidity requirements, and cover the molding of products such as daily necessities, electronic components, and medical consumables.
Compared with other types of injection molding machines, the uniqueness of Desktop Plastic Injection Machine in operation is reflected in the following points:
1. Compact structure and modular design
The desktop model adopts a vertical or desktop layout, eliminating the bulky hydraulic system and complex piping. Its integrated design can reduce the floor space by more than 70%, while realizing plug-and-play functions, which is very suitable for laboratories or small workshops.
2. Easy and flexible operation
User-friendly interface: Equipped with an intuitive touch screen or a simplified control panel, they prioritize ease of use rather than industrial-grade complexity, and only require minimal training to complete basic operations.
Fast mold switching: Designed for small batch production, its lightweight mold and quick clamping mechanism enable seamless transition between different projects.
3. Adapt to specific scenarios
Material versatility: Supports micro-injection of engineering plastics (such as POM, PEEK) and silicone, meeting R&D prototypes, educational demonstrations or customized DIY projects.
Precision control: Non-hydraulic systems (such as servo motors, ball screws) ensure stable pressure and temperature regulation, which is critical for high-precision micro parts.
4. Low maintenance and energy saving
No reliance on hydraulic oil: The electric system eliminates oil leakage and frequent maintenance, reducing environmental pollution and operating costs.
On-demand power consumption: Energy consumption is consistent with small-scale production needs, avoiding high idle power consumption of industrial machines.
5. Enhanced safety for small-scale use
Functions such as automatic pressure relief, emergency stop button and closed molding area reduce risks in non-factory environments and meet low-speed, low-force operation requirements.

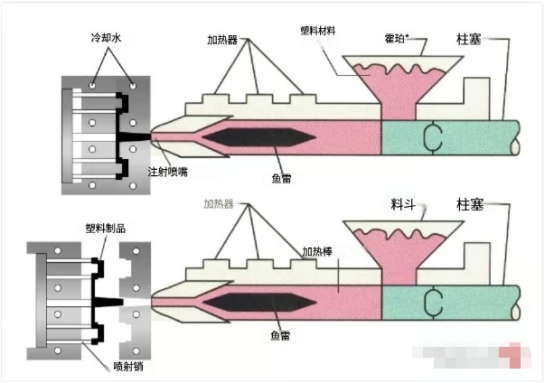

working principle of Desktop Plastic Injection Machine
Plasticization and melting stage
Plastic particles (such as thermoplastic materials) are added through the hopper and heated to a molten state by the heating ring in the barrel. When the screw rotates, the material is further plasticized and homogenized under the action of shear force and friction heat to form a flowing melt.
Key structure: Screw design (such as three-stage gradual/mutated type) controls plasticization efficiency.
Technical features: Multi-stage temperature control system (4~7-stage PID temperature control) ensures uniform melting of materials to avoid cold materials or decomposition.
High-pressure injection and mold filling stage
The molten plastic is injected into the closed mold cavity through the nozzle at high pressure (such as 142.2MPa) and high speed under the axial thrust of the screw. The injection process is controlled in multiple stages (such as 6-stage shooting speed/pressure) to ensure that the melt is quickly filled without bubbles or short shot defects.
Core mechanism: The injection cylinder drives the screw forward, combined with the check ring to prevent the melt from flowing back.
Control accuracy: The positioning accuracy of the electronic ruler is ±0.1mm, and the pressure/position/time conversion is used to achieve pressure holding and shrinkage compensation.
Cooling, solidification and demolding stage
After filling the mold, the mold is quickly cooled by the cooling system (water cooling or air cooling) to solidify the plastic. Subsequently, the ejection mechanism (mechanical/hydraulic) pushes the product out of the mold cavity to complete the cycle.
Cooling optimization: Mold temperature control affects crystallinity and shrinkage, and cooling time is related to the thermal properties of the material.
Automated process: Integrated sensors monitor the molding cycle and support fully automatic or semi-automatic mode.
application of Desktop Plastic Injection Machine
Small toy manufacturing：The desktop injection molding machine is small and easy to operate, suitable for small toy factories and creative studios. It can quickly install molds and accurately produce parts such as dolls and toy cars, which meet the toy quality standards. Manufacturers can quickly change molds according to the market, produce a variety of styles, and reduce costs and inventory.
Electronic product accessories production：For the production of electronic product accessories, the desktop injection molding machine provides an efficient and economical solution. Accurately control the injection molding process, adjust parameters to adapt to different plastics, and ensure high precision and excellent quality of accessories. Help enterprises to efficiently trial produce and small-batch produce in the iteration of electronic products and seize the market.
Customized home furnishings：In the field of customized home furnishings, High speed desktop injection molding machine help personalized production. Consumers can choose materials according to their preferences and create exclusive products through simple molds. For small manufacturers and handicraft shops, the equipment is simple to operate and low-cost, and can quickly realize customized production and create business opportunities.
Cultural and creative product development：The High speed desktop injection molding machine is a tool for the development of cultural and creative products. It is in line with the unique design and small-batch production characteristics of cultural and creative products, and can quickly produce products such as key chains. With its flexible features, designers can transform ideas into entities for market testing, helping companies launch distinctive products and improve their competitiveness.
FAQ
1. What is the basic working principle of this desktop plastic injection molding machine? Can you briefly introduce it?
It melts the plastic particles by heating them, and then uses pressure to inject the molten plastic into the mold cavity, and then cools and solidifies to form plastic products.
2. What types of plastic products is this injection molding machine suitable for?
It is suitable for small plastic products with high precision requirements, such as electronic component housings, small toy parts, medical gadgets, etc.
3. Is the daily maintenance of the equipment complicated? What should I pay attention to?
Daily maintenance mainly includes cleaning the equipment, checking the wear of key components, and regularly changing lubricating oil. It is not complicated to follow the operation manual.
4. If the equipment fails during use, what is your after-sales response time?
Once we receive fault feedback, we will respond as soon as possible, arrange professional personnel to communicate and provide solutions in time.
5. Compared with desktop plastic injection molding machines of other brands, what are the advantages of your product?
Our equipment has outstanding performance in precision control, energy efficiency, ease of operation and cost performance.
If you have any questions, you can leave us a message
Contact Us:xslightings@xslighting.com
Hot Tags: desktop plastic injection machine, China, suppliers, manufacturers, factory, custom, wholesale
Tech Specs
| Dimensions | 600*300*535mm |
| Equipment weight | 45kg |
| Screw diameter | 16mm |
| Injectionmethod | screw extrusion |
| Glue injection motor torque | 12N:m |
| Clamping motor torque | 8N:m |
| Maximun injection volume | 10g |
| Maximun clamping force | 1T |
| Temperature control range | 50°℃350℃Accuracy±1℃ |
| Heating interface | comes with 4heatling control ports.3sections of barrel+1section of mold |
| Mold opening and closing stroke | 135mm(excluding mold) |
| Mold size | 150*150mm(max) |
| injection spend | (5g PP material)one cycle every 12 seconds (excluding cooling) |
| Control system | Integrated control system/5 inch touch screen |
| Power | 220/1kw |
