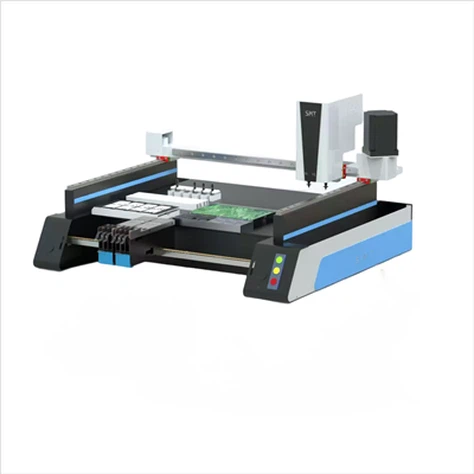

V5 PRO Desktop SMT Pick And Place Machine
●High speed of 2500-3000CPH
●Low price
●Novice-friendly and easy to use
●Fully compatible with 0402 and special-shaped components
Description
Technical Parameters
The V5 PRO Desktop SMT Pick and Place Machine is a high-precision, fully automatic option ideal for PCB prototyping and small-batch production. It handles a wide range of components-including common sizes and small odd-form parts-and uses a multi-camera dual-vision system for flexible calibration, with support for various MARK recognition and no-MARK mode. Powered by advanced motion control, it delivers fast placement speeds while keeping vibration low, ensuring stable performance. Its durable integrated sheet metal frame ships fully assembled for plug-and-play use, and it's beginner-friendly thanks to self-developed intelligent software with clear modules and lifelong free updates. Backed by overseas warehouses in key markets, high customer satisfaction, and customization support, it offers great value for users seeking a reliable, easy-to-use desktop SMT solution.
●High Precision and High Speed: 0.05mm positioning accuracy, 3000 CPH placement speed; S-curve motion control (80% faster than competitors) + closed-loop motor, capable of handling small 0402 components; dual vision systems (up to 3 cameras) for real-time inspection, reducing placement errors.
●Easy to Use and Highly Flexible: The proprietary placement software features a four-module interface and helpful guides, allowing beginners to master the basics in 2-3 hours. It supports automatic switching between six nozzles and is compatible with a variety of feeder types, eliminating the need for complex adjustments to accommodate diverse production needs.
●Strong Compatibility and Versatility: Covers 0402-SOP16 components and 0-7mm odd-shaped parts; supports 36 8mm feeders and 8-16mm tapes; multiple mark recognition and markless mode adapt to diverse PCB designs.
●Stable structure and excellent after-sales service: The integrated sheet metal welded frame and all-metal gears provide durability and stability. Fast shipping from overseas warehouses like Megade, a one-year warranty, and a 94.1% customer satisfaction rating.
Parameter information
| Model | X5Pro |
|---|---|
| Color Classification | V5 Pro Basic Standard Version, V5 Pro Synchronous Shooting Upgrade Version, V5 Pro Luxury Flagship Version, X1 Pro Flying Shot Mounter, V5 Pro Foreign Trade Upgrade 8m... |
| Mounting Speed | 2500 - 3000CPH per hour |
| Electric Feeder Max. | 36 positions (8mm) |
| Missing Component Detection | Visual Detection |
| Minimum Packaging | 0402 (Not recommended for smaller ones) |
| Feeder Material | Metal Gear |
work principle of Desktop SMT Pick and Place Machine
Vision Positioning Principle
A camera captures PCB mark points and component images, the system compares the coordinate data, and the drive mechanism adjusts the position to ensure precise component placement on the pad.
Motion Control Principle
An S-curve motion control algorithm, combined with a closed-loop motor, optimizes the placement head's motion trajectory, achieving smooth acceleration and precise positioning, improving placement speed and accuracy.
Feeder Adaptation Principle
Different feeder types are switched on demand, delivering components through mechanical transmission or vibration, and using a suction nozzle to remove materials, adapting to various component packaging requirements.
Structural Stability Principle
The integrated sheet metal frame reduces operating vibration, and all-metal components enhance wear resistance, ensuring long-term placement accuracy and equipment reliability.
why choose us
●Self-developed software surpasses open source solutions: The company utilizes self-developed intelligent software (free updates, weekly iterations based on user feedback) rather than basic open source tools like OpenPnP. It includes intuitive modules, on-page tutorials, and customizable features, avoiding the high learning curve and functional limitations of source tools.
●The company's high-end hardware far surpasses low-cost competitors: the motion system utilizes closed-loop motors (competitors are mostly open-loop), achieving 0.05mm accuracy and S-curve control (80% faster than standard models). Its placement speed surpasses competitors by 1500-2000 CPH. The structure utilizes a welded sheet metal frame (competitors use loose aluminum extrusions), the feeder has all-metal gears (competitors use plastic), and the nozzle motor is custom-made for high strength (competitors are prone to bending).
●The machine is delivered fully assembled (competitors are mostly disassembled), ensuring plug-and-play operation. Global Service + Customization Capabilities: With overseas warehouses in the US, Canada, and Germany, standard models ship within 3-5 days (competitors experience slower delivery). Full customization is supported (e.g., specialized nozzles for special-shaped components and software feature modifications), along with 24-hour remote support and a one-year warranty.
●Unrivaled Value for Money: The V5 PRO model offers industrial-grade performance (3000 CPH, 0.05mm accuracy, and 3 cameras) at a competitive price. Competitors with this configuration command higher prices. This model bridges the gap between professional SMT machines (high price) and entry-level machines (low performance), enabling small factories, makers, and labs to easily achieve high-precision prototyping.
FAQ
What you may want to know
Can the V5 PRO be customized for special components (e.g., larger connectors or non-standard packages)?
+
-
Yes. We provide custom nozzles (for non-standard component sizes) and software parameter adjustments (for unique placement requirements). Our team will assess your component specs and deliver a tailored solution-lead time for customization is 7-10 days.
How does your after-sales support work for overseas customers ?
+
-
We have overseas warehouses in the US, Canada, and Germany for fast replacement of parts (within 3-5 days). For technical issues, our 24/7 team offers remote troubleshooting via video call (solves 90% of issues in 1 hour); on-site support is available in major regions for complex hardware problems.
Is the machine compatible with 110V voltage ? Do I need a voltage converter?
+
-
The V5 PRO supports both 220V and 110V voltage-no additional converter is needed. It comes with a universal power cord, making it directly usable in North America, Europe, and Asia.
How long does it take to learn full operation? Do you provide training materials?
+
-
Beginners master basic operations (component setup, placement start) in 2-3 hours; full functions (custom placement paths, MARK calibration) take 1-2 days. We include a detailed user manual, video tutorials, and a 1-hour online training session-software also has in-page help buttons for real-time guidance.
Can the machine connect to other SMT equipment to form a small production line?
+
-
Yes. It has standard interface ports to connect with most desktop stencil printers and reflow ovens. We can also provide compatibility guidance for specific brands-helping you build a compact, low-cost SMT line for small-batch production.
What consumables does the V5 PRO need to replace regularly, and what's the approximate cost and replacement cycle?
+
-
The main regular consumables are replacement nozzles (for wear) and Feida belts (for long-term use). A set of 5 compatible nozzles costs about $50-$80, and Feida belts are around $20-$30 per piece. Under normal use (8 hours/day, 5 days/week), nozzles need replacement every 3-6 months, and Feida belts every 6-12 months-total annual consumable costs are usually under $200, which is much lower than industry averages. We also offer bulk purchase discounts for long-term users, and replacement can be done manually in 5-10 minutes with the included tools, no professional maintenance required.
