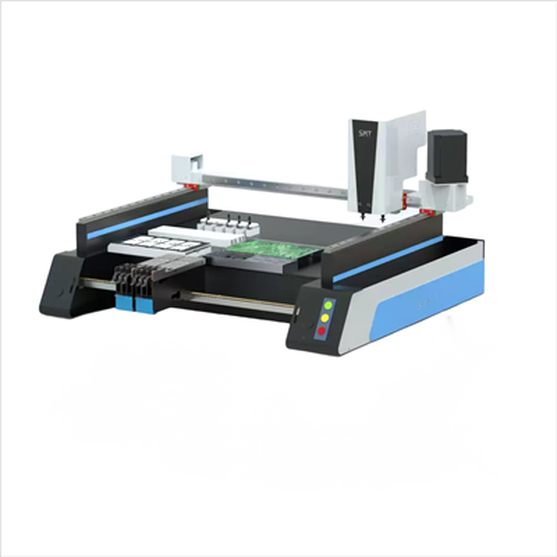

PCB Prototype Pick And Place Machine
●High speed of 2500-3000CPH
●Low price
●Novice-friendly and easy to use
●Fully compatible with 0402 and special-shaped components
Description
Technical Parameters
Xinshan Technology's PCB Prototype Pick and Place Machine is a specialized solution tailored for rapid, precise PCB prototype assembly. Drawing on the brand's rich experience in electronic components and desktop intelligent manufacturing, this compact, user-friendly equipment is designed to meet the unique needs of engineers, designers, educational institutions, and makers. It efficiently handles the picking and placement of SMD LEDs, OLEDs, and various small electronic components, enabling fast turnaround of PCB prototypes without compromising precision. Whether for R&D iterations, classroom demonstrations, or small-batch prototype production, it streamlines the assembly process, reduces manual errors, and accelerates innovation-making it an indispensable tool for PCB prototyping workflows.
China Desktop Pick and Place Machine manufacturer
●Prototype-Focused Precision: Delivers high placement accuracy to meet the strict tolerances of PCB prototypes, ensuring reliable performance of small-batch and custom-designed boards.
●Rapid Assembly Efficiency: Optimized for quick setup and fast component placement, shortening prototype development cycles and enabling timely design iterations.
●Compact & Versatile: Desktop-sized design saves space, fitting seamlessly into labs, workbenches, and R&D facilities; compatible with various prototype PCB sizes and component types.
●User-Centric Operation: Intuitive interface and simplified workflows allow users to program and operate the machine with minimal training, even without extensive technical expertise.
Parameter information
| tem | Details |
|---|---|
| Product Model | V5 Pro Basic Version |
| Core Parameters | No Fixed Tray Position |
| Configured Workbench | None |
| Visual Positioning | Simultaneous Shooting Placement, Top 720P Standard Definition Camera |
| Motion Path | Bottom Camera on the Right, Path Too Long, Affects Speed |
| Software System | PC & Mobile Remote Dual Control |
| Value - added Service | 1 - year Standard Warranty |
working principle
Component & PCB Recognition
Built-in visual recognition technology identifies components on feeders and locates prototype PCBs, generating precise coordinate data for accurate placement.
Precision Component Picking
A lightweight robotic arm with adaptive suction/clamping end effectors gently picks components, avoiding damage to delicate prototype parts.
Dynamic PCB Calibration
Real-time visual calibration adjusts for minor PCB positioning deviations, ensuring components align perfectly with solder pads on custom prototype designs.
Controlled Placement Execution
The arm moves components to preset positions on the PCB with adjustable pressure, ensuring secure contact for subsequent soldering-critical for prototype functionality.
why choose xinshan?
Deep technical expertise: Founded in 2009, JMB has extensive expertise in SMD LED/OLED components and desktop smart manufacturing, bringing proven precision and reliability to prototyping assembly.
Seamless Compatibility: As a supplier of electronic components and prototype equipment, the machine perfectly matches Xinshan's own LEDs/OLEDs and supports common prototype components, eliminating compatibility issues.
Certified Quality & Durability: Complies with ISO 9001, REACH, and RoHS standards, with robust build quality that withstands frequent prototype iterations in R&D and educational settings.
Industry-Proven Trust: Xinshan's desktop products are widely used in education, design, and maker fields, backed by professional after-sales support-including technical guidance for prototype-specific workflows.
fAQ
Q: What PCB sizes and component types does this machine support for prototyping?
A: It works with most standard prototype PCB sizes and supports SMD LEDs, OLEDs, and small electronic components (common in prototyping). Contact us with your specific component/PCB specs for confirmation.
Q: How long does it take to set up and program for a new prototype design?
A: Setup is streamlined-programming can be completed in minutes with the intuitive interface, enabling fast transitions between different prototype iterations.
Q: Is it suitable for low-volume prototype production (e.g., 10-50 units)?
A: Yes, it's optimized for low-volume prototype runs and small-batch production, balancing speed and precision for R&D and pre-production needs.
Q: Do I need specialized software to import prototype PCB designs?
A: It supports common PCB design file formats (e.g., Gerber, CAD) and includes user-friendly software, no additional specialized tools required.
Q: What kind of maintenance is required for long-term prototype use?
A: Minimal maintenance-regular cleaning of feeders, robotic arm lubrication, and visual system calibration; a detailed guide is provided for hassle-free upkeep.
