3D Resin Printers For LCD
◆Technology: Liquid crystal light curing
◆Product size: 350*315*H455mm
◆Printing volume: 228*128*H245mm
◆HD resolution: 7680*4320
◆UI interface operation: touch screen
Description
Technical Parameters
Products Description
3D Resin Printers utilizing LCD technology are cutting-edge devices designed to produce highly detailed and accurate 3D prints using photopolymer resin. These printers use an LCD screen to mask UV light and cure resin layers with exceptional precision, offering faster print speeds and smoother surfaces compared to traditional FDM printers. Ideal for applications requiring intricate detailing, such as jewelry design, dental modeling, and custom miniatures, these printers offer high resolution and fine detail capability. With user-friendly interfaces, open resin systems, and reliable performance, they cater to professionals seeking versatility and efficiency in their 3D printing workflows.
High-resolution printing capability: Equipped with a high-resolution LCD screen, it can precisely control the light exposure to ensure clear details of each layer, and realize the printing of fine and complex models.
Fast curing speed: The whole layer exposure technology using the LCD screen is faster than the traditional point light source, which greatly reduces the printing time and is suitable for efficient production environments.
Open resin system: Supports a variety of third-party resins and provides a wide range of material options. Users can choose the appropriate printing material according to application requirements.
Stable printing quality and reliability: The use of a solid mechanical structure and a sophisticated optical system ensures stable output quality and high repeatability during printing, reducing failure rate and maintenance costs.
Product Specifications
|
Product Size：
|
350*315*H455mm
|
Power:
|
Print 120w, Heating 200w
|
|
Package Size：
|
445*420*550mm
|
UI Operation：
|
Touch screen
|
|
Package Weight：
|
19kg
|
File Format：
|
STL
|
|
Printing Volume：
|
228*128*H245mm
|
HD Resolution：
|
7680*4320
|
| Rated capacity | 800/1000/1150/1275kg |
Light spot size:
|
29.6μm
|
|
Exposure time:
|
2-3s/layer(0.05mm)
|
Printing Tolerance：
|
±0.05
|
|
Technology：
|
LCD Photocuring
|
Layer Height：
|
0.03,0.05,0.1mm
|
|
Wavelength Range：
|
402.5-405mm
|
Resin Vat Capacity：
|
0.7kg
|
|
File Transfer：
|
USB
|
Constant Temperature：
|
25℃,30℃,35℃ automatic constant temperature system
|
|
Printer System：
|
Linux
|
Voltage：
|
110, 220V (produced on demand)
|
Main functions
5-inch high-definition touch screen: Equipped with a high-definition touch screen, the operation is extremely convenient and significantly improves the user experience.
10.3-inch 8K ultra-clear resolution: With 8K ultra-high resolution, the details of the printed model are clear at a glance.
Built-in heating system: Uses PTC ceramic heating technology to ensure a constant temperature in the printing environment, thereby improving printing quality and success rate.
Built-in air filter: Equipped with an odor purification circulation system and a honeycomb carbon filter to powerfully remove odors and keep the printing area always fresh and pleasant.
Quickly replace the LCD module: Using a modular design, the LCD screen can be quickly replaced, reducing downtime and improving work efficiency.
Flip cover design: The exquisite flip cover design saves space, is easy to operate, and makes daily maintenance easy.
Compatible with ultrasonic cleaning machines: Supports ultrasonic cleaning machines to speed up the cleaning process after printing and simplify the cleaning process.
Advantages
Ultra-high printing accuracy:
Utilizing high-resolution LCD technology to achieve ultra-fine printing effects, suitable for applications that require fine details, such as jewelry design and figure production.
Higher printing efficiency:
Whole-layer exposure technology significantly increases printing speed, suitable for rapid prototyping and small batch production, reducing waiting time and improving productivity.
Compatible with a variety of materials:
Supports various commercial and specialty resins, such as high-toughness resin, transparent resin, biocompatibility resin, etc., to meet the special needs of different industries.
Easy maintenance and operation:
The humanized operation interface and modular design make the maintenance of the machine simple, suitable for all types of users from beginners to professionals.

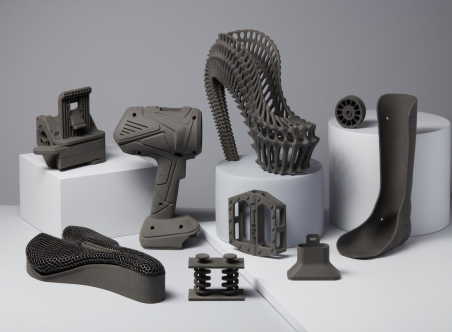

Application of industrial resin 3d printer
Jewelry Design and Prototyping: Print high-precision and complex models suitable for the design and development of jewelry and high-end accessories.
Medical and Dental Models: Print accurate dental and medical models to support the planning and simulation of medical and dental surgeries.
Customized Figures and Models: Widely used in figures, game models and character design, providing high-detail and high-quality customized printing services.
Engineering and Industrial Design Prototypes: Rapidly produce complex parts and prototypes suitable for engineering design and product development
FAQ
What are the advantages of 3D Resin Printers for LCD compared with DLP and SLA technologies?
LCD technology is generally more cost-effective than DLP and SLA, and is faster when printing large areas. It provides excellent printing accuracy, especially suitable for models with high resolution and high detail requirements.
What types of resins can these LCD 3D printers support?
Compatible with a variety of types of photosensitive resins, including standard resins, high-toughness resins, transparent resins, flexible resins, and biocompatible resins to meet the needs of different industries.
How to ensure the stability and accuracy of LCD printers during printing?
By adopting a high-precision optical system, a sturdy mechanical structure, and an optimized cooling system, the light source is stable and the mechanical accuracy is ensured during the printing process, ensuring high-quality output for each print.
Is the maintenance cost of the printer high?
LCD printers are generally simple to maintain, requiring only regular cleaning of the LCD screen and optical components, as well as replacement of consumables, and the maintenance cost is relatively low.
Are these 3D printers easy to operate and suitable for beginners?
Yes, these printers are usually equipped with a user-friendly operating interface and a simple setup process, which can be easily used by beginners, while also providing advanced setting options for professionals.
